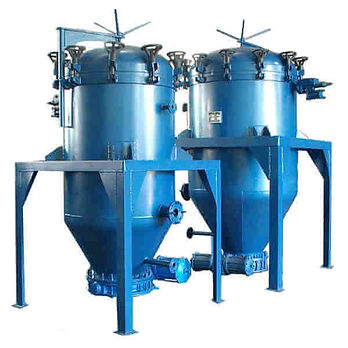

Vertical Pressure Leaf Filter（VPLF）
Solutions for edible oil & chemical industries
Vertical pressure leaf filter(VPLF) is one kind of efficient low pressure solid liquid filtration equipment. Its main filter elements is filter leaves constructed by multi-layer stainless steel filter mesh.
​
​
​
The Vertical pressure leaf filter filtration effect is realized by both filter mesh and filter cake. According to test, the filtration precision can reach 5-10 microns.

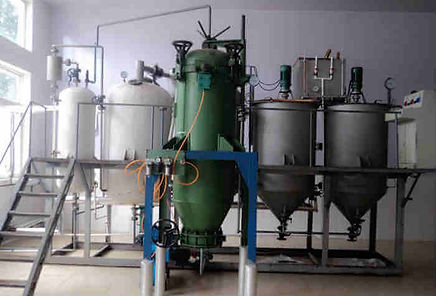

Vertical pressure leaf filter applications
​
Vertical pressure leaf filter is mainly used for edible oil & chemical industries, such as crude oil filtration, bleached and/or detoxified oil filtration, winterized oil filtration, chemical , crystallization separation in various processes of petrochemical industry, inorganic chemical industry, organic chemical industry, filtration separation of various catalysts, decolorization filtration of chemical products and safety filtration etc..
​
​
Vertical pressure leaf filter working process
​
​
​
​
​
​
​
​
​
​
​
​
​
​
Vertical Pressure Leaf Filter Elements Construction
The main filter elements of vertical pressure leaf filter is inner filter leaves. Each filter leaf is constructed by 5 layer filter mesh(2 layers filter mesh, 2 layer support mesh and middle support frame). The mesh size and filtration precision is determined by the materials that need to be treated.
​
​
​
Vertical Pressure leaf Filter Features
​
-
Compact structure, small footprint.
-
SS304/316 filter mesh, good filter effect, low loss.
-
Automatic vibration cake discharging, low labor intensity.
-
Fully closed design. Clean working environment.
-
Two sets in parallel to realize continuous production.
​
Pressure Leaf Filter Design index
​
-
Design temperature: ≤150℃
-
Liquid in the residue: ≤0.5%
-
Solid in the filtrate:≤0.02%
-
Working pressure:0.49 Mpa
​
​
Click for learning More About Pressure Leaf Filter
​
​
Vertical Pressure Leaf Filter Types Technical Datas
